Fully Automatic Concrete Compression Machines perform complete strength tests for concrete cylinders, beams, cubes, cores, and other sample types, with minimal operator input. An automated test cycle is initiated with a single button. The machine controls specimen contact, pre-loading, rate of load, break detection, data collection, and return of the piston to the home position following specified requirements for the selected test method. Selection of the test method, sample type, specimen data, and test parameters are made on the touchscreen. Choosing the “Fast Testing” option and your compression machine will run tests as fast as you can load your cylinders, cubes or blocks while sequentially numbering each test automatically and enters into the database.The machine controls specimen contact, pre-loading, rate of load, break detection, data collection, and return of the piston to the home position following specified requirements for the selected test method. The machine features a high stiness frame and fully enclosed test chamber that is especially suited for high testing volumes and high strength concrete testing. Testing Machines frames are manufactured from solid steel into a one-piece, assembled block that exceeds ACI recommendations. Patented technology.
Main characteristics
- Touchscreen Monitor 15.6 inch (Resolution 1920×1080 Pixels)
- Force meter with 24-bit digital-to-analog converter
- Platen hardness 60 HRC
- Programmable change in the rate of load
- Data archive with protocol printing
- Language selection English, Spanish, other languages on request
- Multiple units: Lbf / Ton / kN
- Safety features include an E-stop button, fragment guard doors, a safety hydraulic pressure limitation, and a piston over-travel limit switch
- Required software and compressometer and compressometer/extensometer testing fixtures determine for ASTM C469 modulus of elasticity (MOE), or MOE and Poisson’s ratio on 4 or 6 in (101 or 152mm) cylinders must be purchased separately
- AC motor fitted with VFD INVERTER device: high efficiency, low consumption, silent operation
- Dual stage pump for fast approach and automatic switch to high pressure for loading
- Available accessories easily adapt them for testing of different sized cubes, cores, masonry prisms, and cylinders, as well as flexural beam specimen
- Warranty for cylinder with piston 1 years. 2 year warranty for pumping station and electronics. The guarantee is carried out by removing and sending the defective unit at our expense

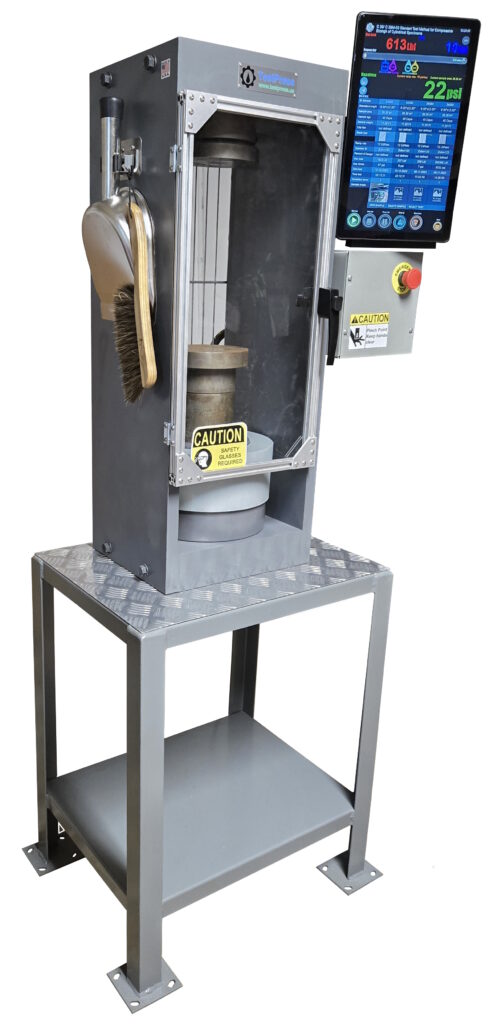

TP-250 (250,000 lbf Automatic Concrete Compression & Flexural Machine)
Features
- 2,5 to 250,000 lbf (11.12 to 1112 kN) testing range
- Accuracy of 0.5% of current indicated load Class A (ASTM)
- Continuous rate of loading from 0 – 256,000 lbf (0 – 1112 kN) per minute
- Automatic control of the rate of load increase with high precision
- Suitable for cylinders, cubes, beams and cores of concrete mixes
- Suitable for concrete strength up to 19,894 psi for 4″ diameter cylinders and up to 8,841 psi for 6″ diameter cylinders
- Standard configuration includes 3 spacers 6″ x 4″ and platens to test 4″ x 8″ and 6″ x 12″ cylinders.
- Single Phase 115V, 60Hz or 220V, 60Hz (model TP-250.1 or TP-250.2)
- Manufactured from solid steel into a one-piece, assembled block that exceeds ACI recommendations
- Optional test platens and accessories available
- Mounting stand is included
Specifications
- Vertical Opening – 19.75″ (501 mm)
- Horizontal Opening – 12.375″ (314 mm)
- Piston Stroke – 3″ (76.2 mm)
- Diameter bottom and top plates – 6.5″ (165mm)
- Oil Reservoir Cap -2 gal (7.6 liter)
- Overall Width x Depth x Height – 27 x 21 x 68″ (685 x 533 x 1727 mm)
- Estimated shipping weight – 842 lb (382 kg)
Price: $8,150.00
TP-325 (325,000 lbf Automatic Concrete Compression & Flexural Machine)
- 3,25 to 325,000 lbf (14.23 to 1474 kN) testing range
- Accuracy of 0.5% of current indicated load Class A (ASTM)
- Continuous rate of loading from 0 – 325,000 lbf (0 – 1474 kN) per minute
- Automatic control of the rate of load increase with high precision
- Suitable for cylinders, cubes, beams and cores of high-strength concrete mixes
- Standard configuration includes platens to test 6″ x 12″ (150mm x 300mm) cylinders.
- Single Phase 115V, 60Hz or 220V, 60Hz (model TP-325.1 or TP-325.2)
- Manufactured from solid steel into a one-piece, assembled block that exceeds ACI recommendations.
- Mounting stand is included
- Optional test platens and accessories available
Specifications
- Vertical Opening – 19.75″ (501 mm)
- Horizontal Opening – 12.375″ (314 mm)
- Piston Stroke – 3″ (76.2mm)
- Diameter bottom and top plates – 6.5″ (165mm)
- Oil Reservoir Cap -2 gal (7.6 liter)
- Overall Width x Depth x Height – 27 x 21 x 68″ (685 x 533 x 1727 mm)
- Estimated shipping weight – 961 lb (436 kg)
Price: $8,350.00
TP-425 (425,000 lbf Automatic Concrete Compression & Flexural Machine)
- 4,25 to 425,000 lbf (18.9 to 1890 kN) testing range
- Accuracy of 0.5% of current indicated load Class A (ASTM)
- Continuous rate of loading from 0 – 425,000 lbf (0 – 1890 kN) per minute
- Automatic control of the rate of load increase with high precision
- Suitable for cylinders, cubes, beams and cores of high-strength concrete mixes
- Standard configuration includes platens to test 6″ x 12″ (150mm x 300mm) cylinders
- Single Phase 115V, 60Hz or 220V, 60Hz (model TP-425.1 or TP-425.2)
- Manufactured from solid steel into a one-piece, assembled block that exceeds ACI recommendations.
- Mounting stand is included
- Optional test platens and accessories available
Specifications
- Vertical Opening – 19.75″ (501 mm)
- Horizontal Opening – 12.375″ (314 mm)
- Piston Stroke – 3″ (76.2mm)
- Diameter bottom and top plates – 6.5″ (165mm)
- Oil Reservoir Cap -2 gal (7.6 liter)
- Overall Width x Depth x Height – 27 x 21 x 68″ (685 x 533 x 1727 mm)
- Estimated shipping weight – 1003 lb (455 kg)
Price: $8,550.00

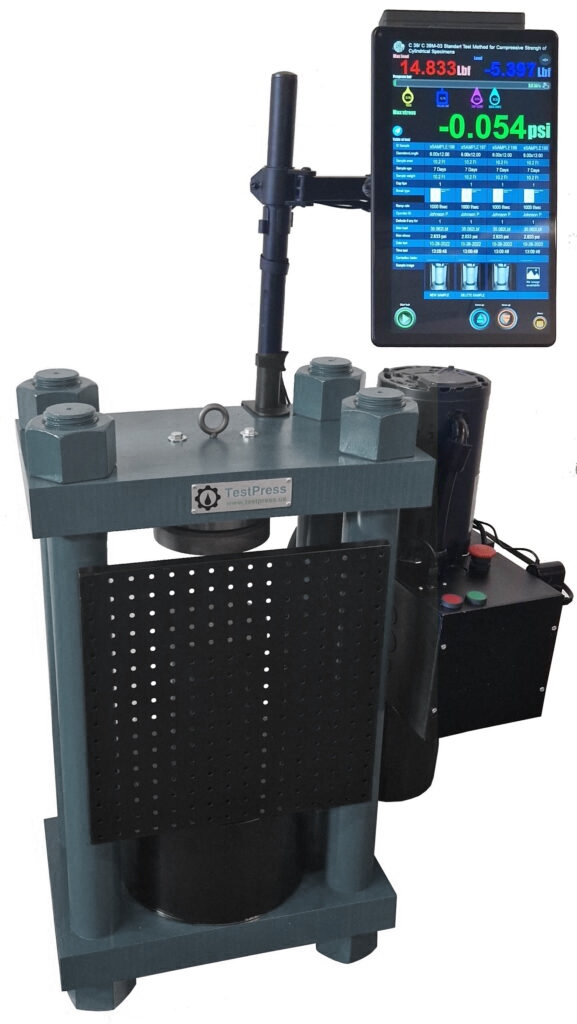

TP-500 (500,000 lbf Automatic Concrete Compression & Flexural Machine)
- 5,000 to 500,000 lbf (22.24 to 2224 kN) testing range
- Accuracy of 0.5% of current indicated load Class A (ASTM)
- Continuous rate of loading from 0 – 300,000 lbf (11,387 – 136077 kN) per minute
- Automatic control of the rate of load increase with high precision
- Stable for cylinders, cubes, beams and cores of high-strength concrete mixes
- Standard configuration includes platens to test 6″ x 12″ (150mm x 300mm) cylinders.
- Single Phase 115V, 60Hz or 220V, 60Hz (model TP-500.1 or TP-500.2)
- Large frame opening to allow easier loading of test specimens due to the design by columns
- Mounting stand is not included
- Optional test platens and accessories available
Specifications
- Vertical Opening – 18″ (467mm)
- Horizontal Opening – 14″ (355 mm)
- Piston Stroke – 3″ (76.2mm)
- Lower and upper Platen – 6.5″ (165mm)
- Oil Reservoir Cap -2 gal (7.6 liter)
- Overall Width x Depth x Height – 30 x 14 x 55″ (762 x 355 x 1400 mm)
- Estimated shipping weight – 1146 lb (520 kg)
Price: On request
TP-600 (600,000 lbf Automatic Concrete Compression & Flexural Machine)
- 6,000 to 600,000 lbf (26.69 to 2669 kN) testing range
- Accuracy Class A (ASTM) starting from 5% of full scale (less than ± 0.5% of Indicated Load)
- Continuous rate of loading from 0 – 600,000 lbf (0 – 2669 kN) per minute
- Automatic control of the rate of load increase with high precision
- Suitable for cylinders, cubes, beams and cores of high-strength concrete mixes
- Standard configuration includes platens to test 6″ x 12″ (150mm x 300mm) cylinders
- Large frame opening to allow easier loading of test specimens due to the design by columns
- Mounting stand is not included
- Optional test platens and accessories available
- Vertical Opening – 18″ (467mm)
- Horizontal Opening – 14″ (355 mm)
- Piston Stroke – 3″ (76.2mm)
- Lower and upper Platen – 6.5″ (165mm)
- Oil Reservoir Cap -2 gal (7.6 liter)
- Overall Width x Depth x Height – 30 x 14 x 55″ (762 x 355 x 1400 mm)
- Estimated shipping weight – 1210 lb (550 kg)
Price: On request
